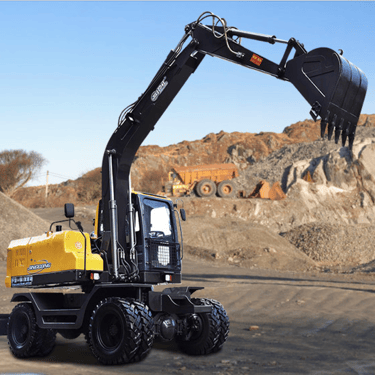

JingGong Wheel Excavators Models

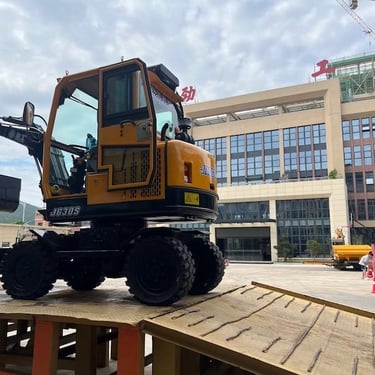

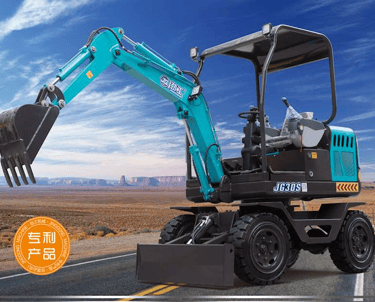

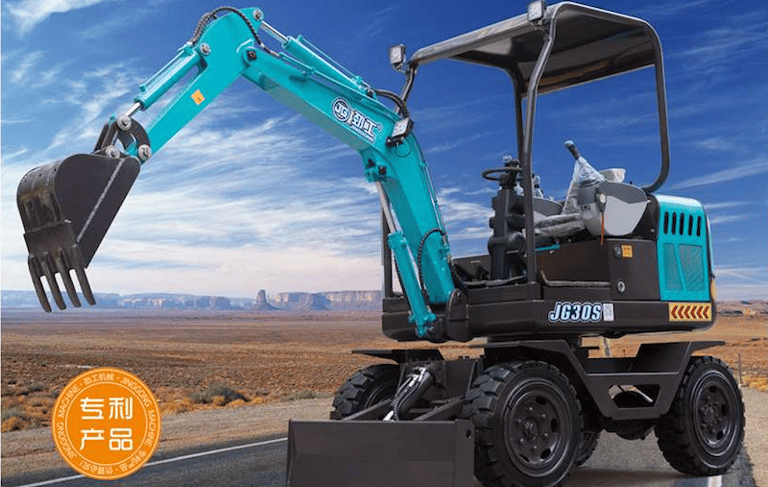

JG30S Wheel Excavator 2.5T MT Drive
Engine Brand and Power: Yanmar 20.2KW
Rated speed: 2200r/min
Angel of rotation: 360°
Walking speed: 0-12km/h
Volume of bucket: 0.08m3
Fuel/Hydraulic oil tank capacity: 40/50L
Axle base: 1500mm
Wheelbase (front/rear): 1115mm
Transport dimension: 4200*1300*2560mm
Weight: 2500kg

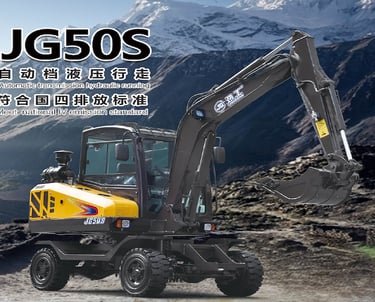

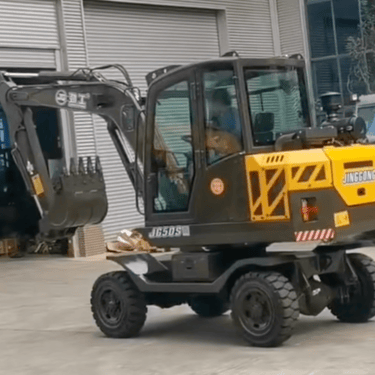

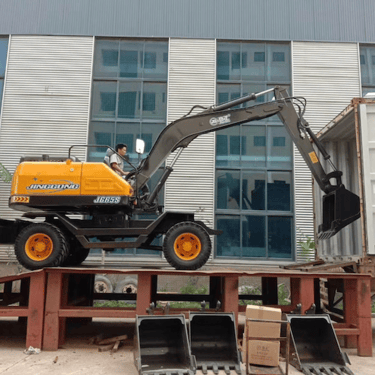

JG50S Wheel Excavator 4.5T AT Drive
Engine Brand and Power: Yanmar 36.2KW/Xinchai 36.8KW
Rated speed: 2200/2100 r/min
Angel of rotation: 360°
Walking speed: 0-15km/h
Volume of bucket: 0.12m3
Fuel/Hydraulic oil tank capacity: 45/55L
Axle base: 2000mm
Wheelbase (front/rear): 1270mm
Transport dimension: 5350*1500*2680mm
Weight: 4500kg

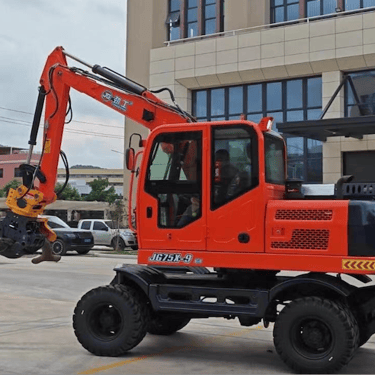

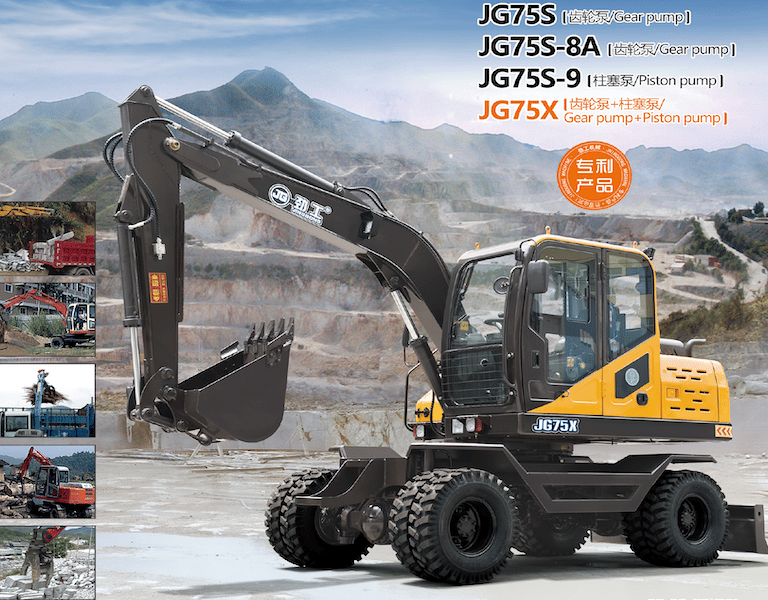

JG75S Wheel Excavator 7T MT Drive
Engine Brand and Power: Yunnei 58.8KW/Yuchai 48KW
Rated speed: 2200 r/min
Angel of rotation: 360°
Walking speed: 0-25km/h
Volume of bucket: 0.2-0.3m3
Hydraulic system working pressure: 20Mpa
Grade climbing ability: 58%/30°
Tyre model: 7.50-16
Maximum hauling force: 45KN
Fuel/Hydraulic oil tank capacity: 110L
Axle base: 2400mm
Wheelbase (front/rear): 1660/1580mm
Transport dimension: 5800*2100*2850mm
Weight: 7000kg
Pump Option: Gear or Piston or Gear+Piston

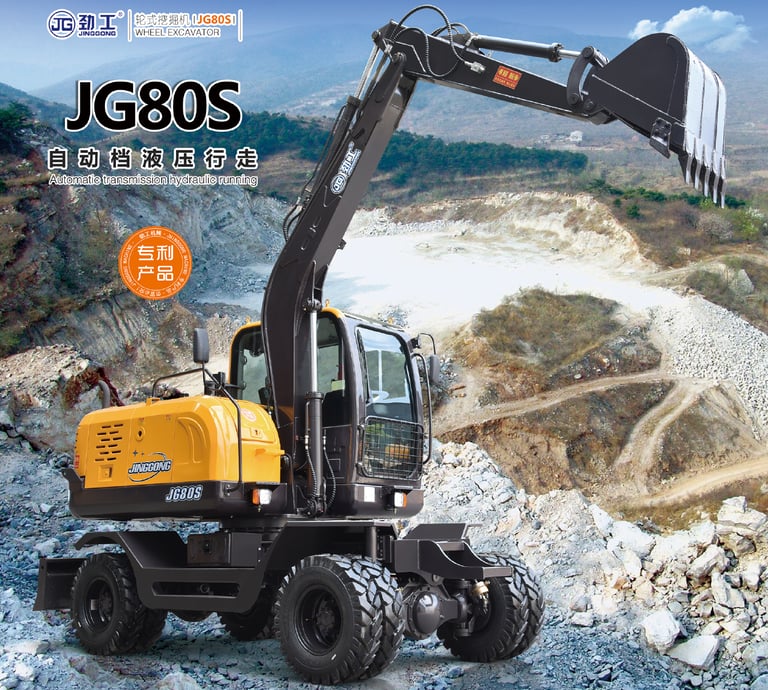

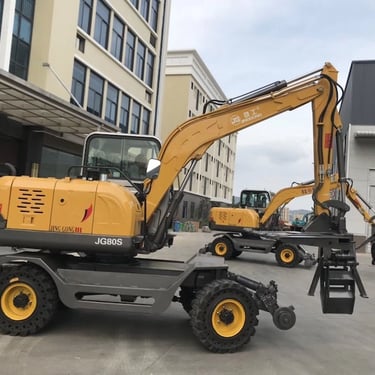

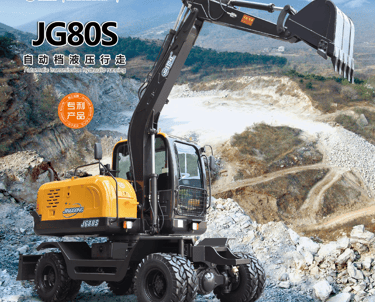

JG80S Wheel Excavator 7T AT Drive
Engine Brand and Power: Yunnei 58.8KW/Yuchai 48KW
Rated speed: 2200 r/min
Angel of rotation: 360°
Walking speed: 0-25km/h
Volume of bucket: 0.25m3
Hydraulic system working pressure: 21Mpa
Hydraulic system flow: 150L/min
Maximum hauling force: 60KN
Grade climbing ability: 58%/30°
Tyre model: 8.25-16
Fuel/Hydraulic oil tank capacity: 110L
Axle base: 2600mm
Wheelbase (front/rear): 1660/1580mm
Transport dimension: 5800*2100*2850mm
Weight: 7000kg

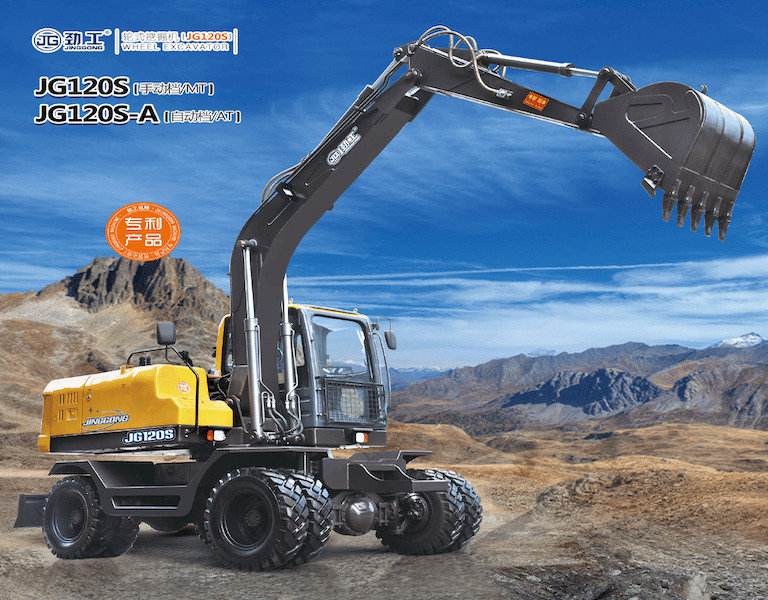

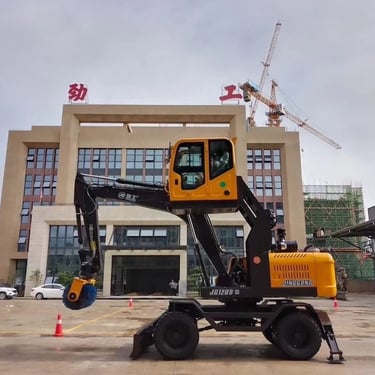

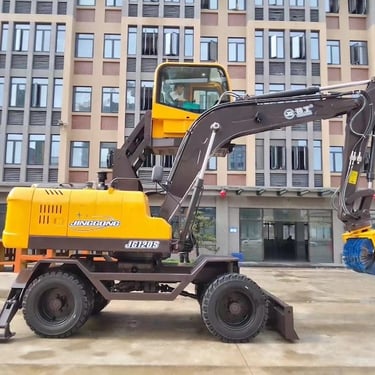

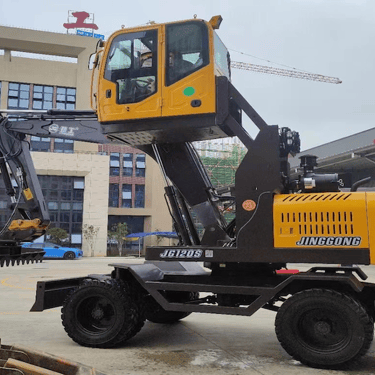

JG120S Wheel Excavator 10T MT/AT Drive
Engine Brand and Power: Yuchai 73.5KW
Rated speed: 2200 r/min
Angel of rotation: 360°
Walking speed: 0-25km/h
Volume of bucket: 0.35m3
Hydraulic system working pressure: 28Mpa
Hydraulic system flow: 180L/min
Maximum hauling force: 60KN
Grade climbing ability: 58%/30°
Tyre model: 8.25-20
Fuel/Hydraulic oil tank capacity: 150L
Axle base: 2600mm
Wheelbase (front/rear): 1930/1830mm
Transport dimension: 6700*2380*3050mm
Weight: 10000kg

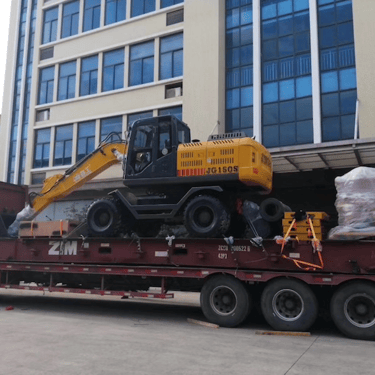

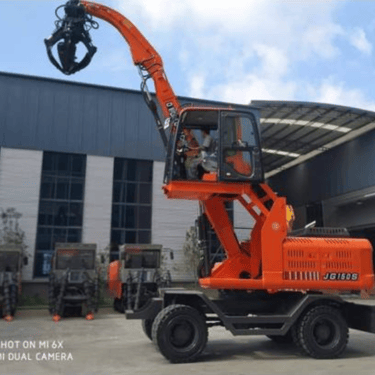

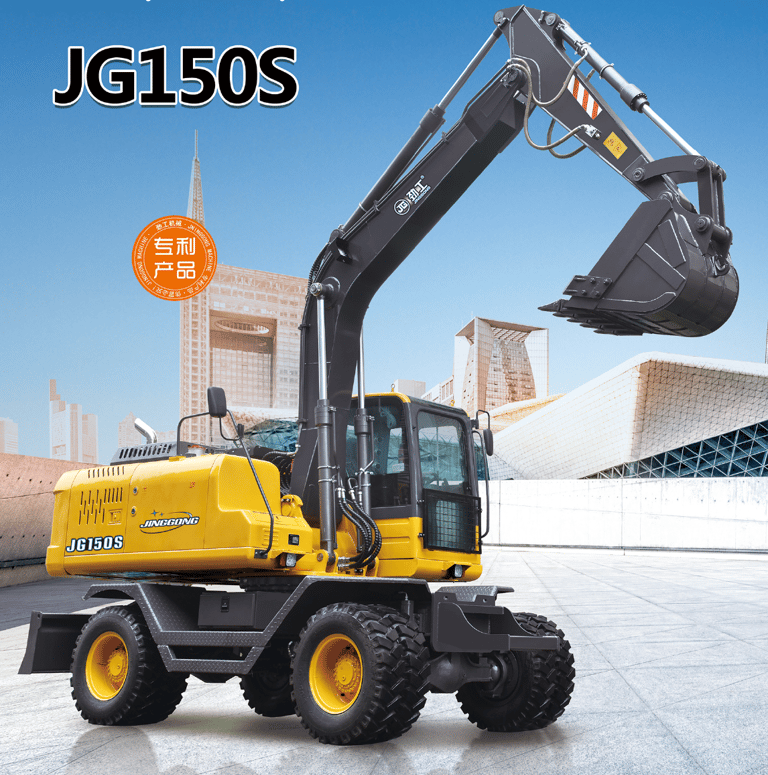

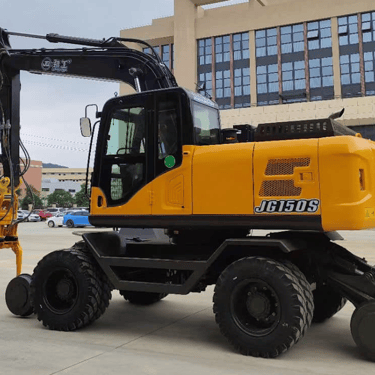

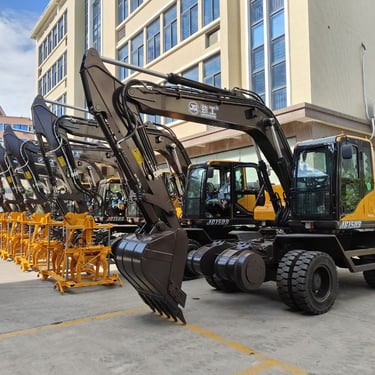

JG150S Wheel Excavator 13.5T AT Drive
Engine Brand and Power: Cummins 93.5KW
Rated speed: 2200 r/min
Angel of rotation: 360°
Walking speed: 0-28km/h
Volume of bucket: 0.4-0.5m3
Hydraulic system working pressure: 32Mpa
Hydraulic system flow: 270L/min
Maximum hauling force: 76.5KN
Grade climbing ability: 58%/30°
Tyre model: 9.00-20
Fuel/Hydraulic oil tank capacity: 200L
Axle base: 2750mm
Wheelbase (front/rear): 1900mm
Transport dimension: 7500*2500*3000mm
Weight: 13500kg

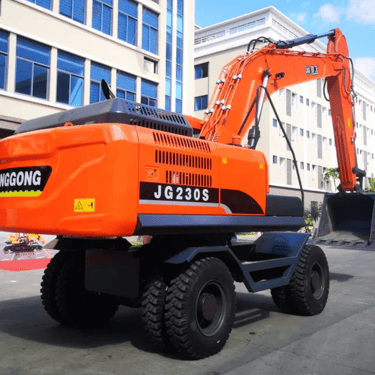

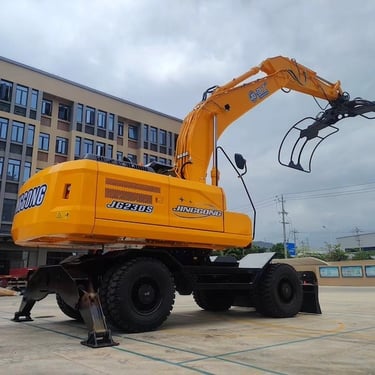

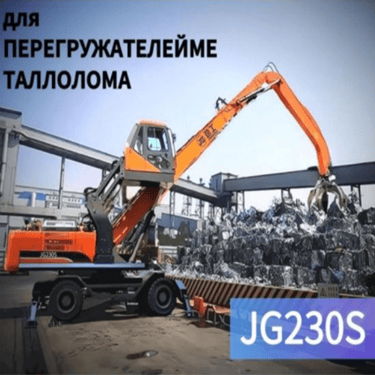

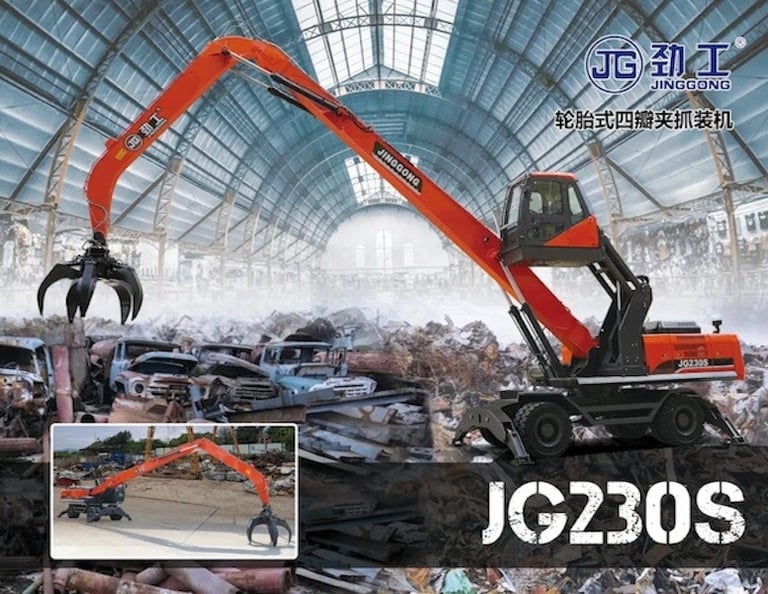

JG230S Wheel Excavator 23T AT Drive
Engine Brand and Power: Cummins 124KW
Rated speed: 2050 r/min
Angel of rotation: 360°
Walking speed: 0-25km/h
Volume of bucket: 1.1m3
Hydraulic system working pressure: 32Mpa
Hydraulic system flow: 450L/min
Maximum hauling force: 76.5KN
Fuel/Hydraulic oil tank capacity: 200L
Axle base: 2800-3300mm
Wheelbase (front/rear): 1930mm
Transport dimension: 13850*3000*3500mm
Weight: 22000-26500kg

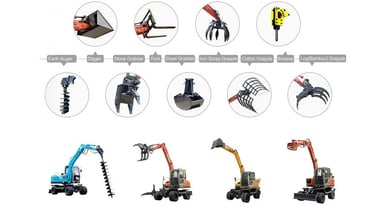

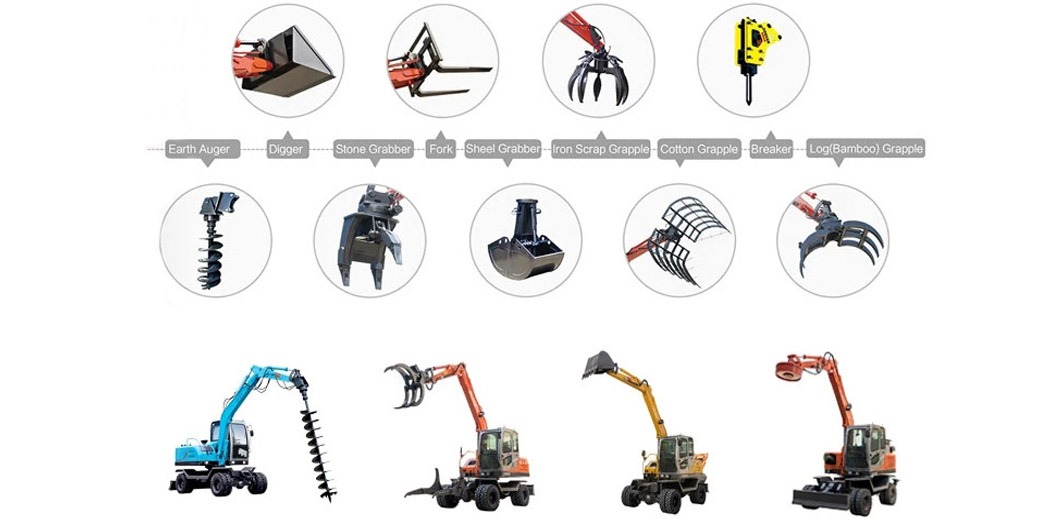

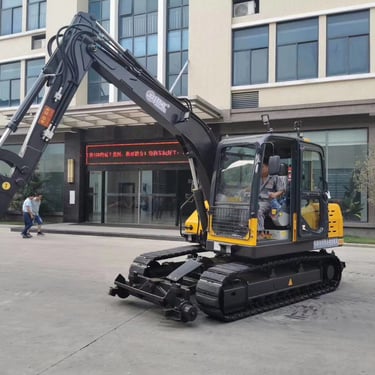

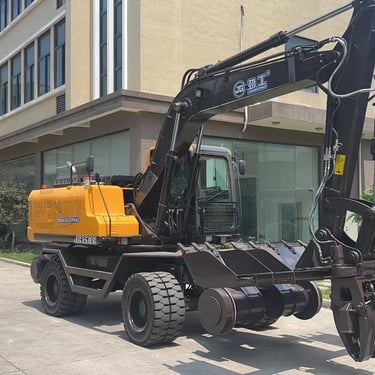

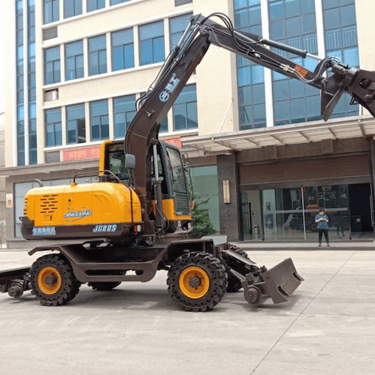

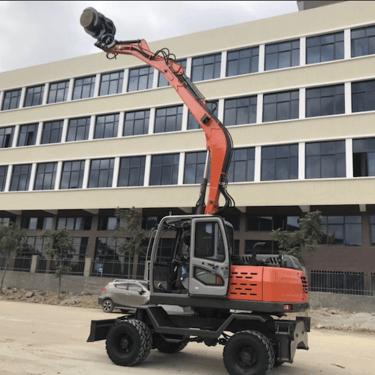

Wheel Excavators Attachments

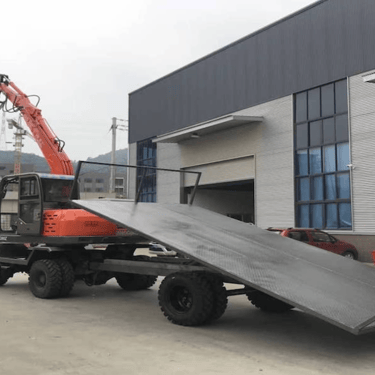

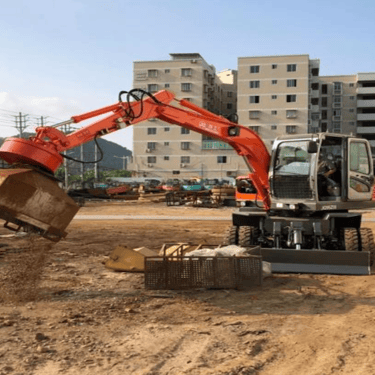

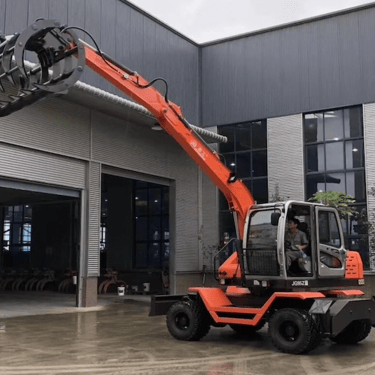

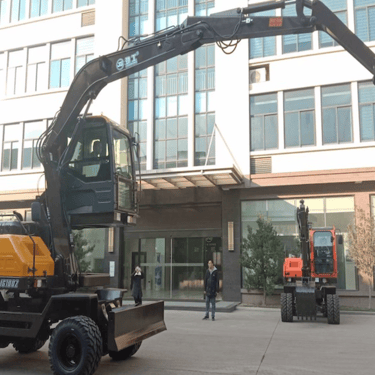

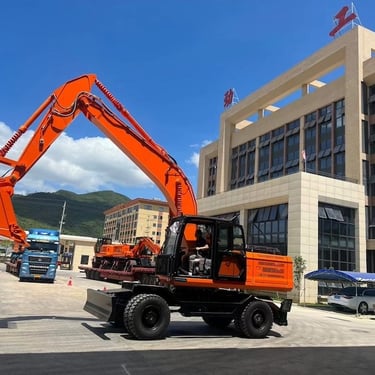

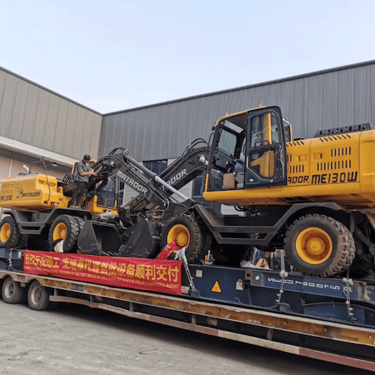

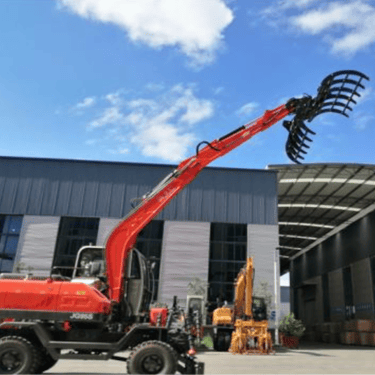

Application Cases
